- Description
Description
TECHNICAL INFORMATION SUMMARY
Width 75 cm
Type of extraction Outdoor exhaust/recirculation (with optional accessory set sold separately)
Sound power at max. speed (2010/30/EC) 70 dB
Number of extraction levels 3
Maximum air extraction power 619 m³/h
Energy efficiency class (2010/30/EC) B
Home Connect No
Rectangular hood: power, quality, comfort and design.
Your hood will become a decorative element that will fit in perfectly with the rest of your kitchen, and the best thing is that it will offer you the highest performance. Because you will have power, quality and comfort all in one appliance. In addition, it is easy to clean: its filters can go in the dishwasher and its modern stainless steel finish will allow you to clean it in one go. All so that design and comfort go hand in hand in your kitchen.
Recirculation installation: the solution when your kitchen does not have a smoke outlet.
If your kitchen does not have a smoke outlet or the one that exists is not suitable, do not worry: all Balay hoods can be installed in recirculation. You only need a special filter and that’s it. The hood extracts the smoke and steam produced while you cook and returns the air to the room completely free of grease and odours. In addition, it is a very efficient system since the heat from the heating or air conditioning is not wasted.
LED lighting: when you know how much they save, you’ll see everything more clearly.
With LED lighting, you’ll not only see better and for longer. It’s also by far the most efficient, meaning it considerably reduces electricity consumption compared to halogen systems. And all this without losing any quality in lighting. How do you see it?
With this extraction capacity, it doesn’t matter what you’re cooking
The aroma of your recipes is certainly irresistible, but when it comes to cooking, it’s much more convenient for the space to be free of smoke, odours and steam. And this is achieved with a hood like this, with a powerful and efficient motor, which ensures great extraction power.
- Rectangular hood with the highest performance.

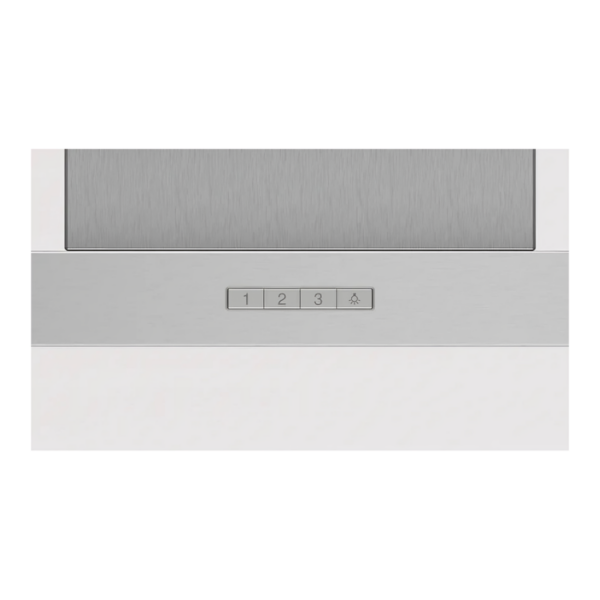

- Thanks to its mechanical control, you will easily access the desired power level.

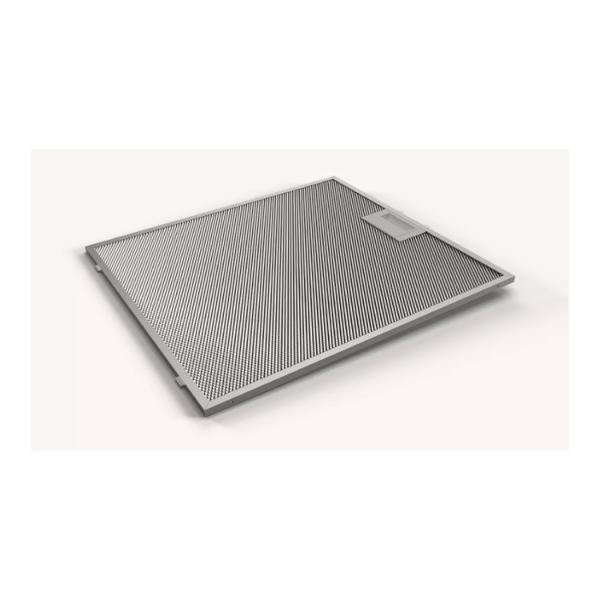

- Traditional design filters made of multi-layer aluminium, highly efficient and dishwasher safe.
- Adaptable to each space and kitchen. Possibility of recirculation installation.
- Recirculation installation allows you to enjoy clean air even if the kitchen does not have a smoke outlet.
TECHNICAL SPECIFICATIONS
GENERAL
Width 75 cm
Body colour Stainless steel
Installation type Wall mounted
Extraction type Outdoor exhaust/recirculation (with optional accessory set sold separately)
Total motor power 215 W
Control and indicators Push button
Number of extraction levels 3
Maximum air extraction power 619 m³/h
Sound power at max. speed (2010/30/EC) 70 dB
Max. air extraction capacity at outlet 422 m³/h
Sound power at max. (in recirculation) 74 dB
Grease filter material Washable aluminium
Energy efficiency class (2010/30/EC)Â B
Annual energy consumption 47.4 kWh/a
TYPE OF CONSTRUCTION
Air outlet diameter 150 / 120 mm
Body colour Stainless steel
Grease filter material Washable aluminium
Grease filter type Multi-layer cassette
Installation type Wall-mounted
Body material Stainless steel
Decorative duct material Stainless steel
Motor location Motor integrated into the hood chimney
Number of motors 1
Extraction type Outdoor outlet/recirculation (with optional accessory set sold separately)
Typology Wall-mounted
CONNECTION
Power Connection 220 W
Power cord length 130.0 cm
Frequency 50; 60 Hz
Total motor power 215 W
Voltage 220-240 V
THIS PRODUCT REQUIRES INSTALLATION. PLEASE CALL 20076305 – 20075397 FOR A FREE QUOTE
